Each handlingUnit is assigned a packageTypeCode. This code is used to describe the type of packaging that is used for the handlingUnit. The packageTypeCode can be used to determine the correct handling instructions for the handlingUnit.

Unece

The main agency for package type codes is the unece (United Nations Economic Commission for Europe). They have a list of codes that are used in for example EDIFACT, GS1 eg Transport Instruction and Open Trip Model.

The unece list is very extensive and contains a lot of codes that are not relevant for the carrier gateway. We have therefore created a subset of the unece list that is relevant for the carrier gateway. We have also added some codes that are not in the unece list, but are relevant for the carrier gateway.

UN package type codes

For Dangerous goods certified packages, the UN created a standard which closely relates to the unece list. Some websites that explain the UN package type codes:

• https://packagingguruji.com/un-packaging-code/
• https://airseacontainers.com/blog/un-packaging-codes/

The concept of combining a type of packaging and material of construction is something we found usefull to adopt in our package type codes.

Carrier gateway package type codes

Where the unece list uses 2 digit codes which are not as descriptive and seem to be build over-time as they are not so strict as the UN package types, we have chosen to use a more descriptive code. We still combine the type of packaging and material of construction as this is a very usefull concept.

Below the combined list of package type codes that can be used. The categories are:

• bag
• bale
• barrel
• box
• bulk
• cage
• carrier: Packaging supplied by a carrier, which should be specifically referenced in the integration with the carrier. Eg FedEx Tube, UPS Express Box etc..
• case
• crate
• drum
• envelope
• ibc
• jerrican
• pallet
• receptacle
• tank

If needed, we then combine the category with:

• material of construction
• specific dimensions
• specific agencies that manage that type of packaging
• unique properties of the packaging

Most commonly used handling unit packaging types

image	gateway packageTypeCode	description	unece code
	bag-poly	Bag, polybag	44
	box	Box	BX
	bundle	Bundle	BE
	cage-roll	Cage, roll	CW
	crate	Crate	CR
	drum	Drum	DR
	envelope	Envelope	EN
	ibc-bag-jumbo	Intermediate bulk container	WA
	pallet-100x120-euro	Block Pallet 100cmx120cm	OI
	pallet-80x120-euro	Euro Pallet (EPAL)	OH
	pallet-80x60-euro	1/2 Euro Pallet Size (EPAL)	OG
	pallet-60x40-euro	1/4 EURO Pallet Size (EPAL)	OJ
	pallet-40x30-euro	1/8 Euro Size Pallet (EPAL)	OL
	pallet-100x120-oneway	Oneway pallet 100cmx120cm	O5
	pallet-80x120-oneway	Oneway pallet 80cmx120cm	O4
	pallet-80x60-oneway	Oneway pallet 80cmx60cm	O3
	pallet-box	Pallet, box Combined open-ended box and pallet	PB
	unpacked	Unpacked or unpackaged	NE

Exceptions for Express carriers

Both UPS and FedEx have custom packaging where the box and envelope are more defined. They typicall provide these packaging for free.

gateway packageTypeCode	UPS	FedEx

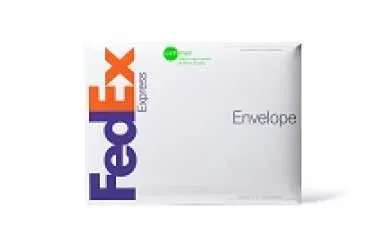

carrier-envelope	UPS Letter 345mm x 250mm	FedEx® Letters 24.1 x 31.8 cm

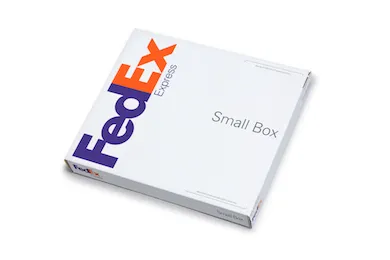

carrier-small-box	UPS Express Box (small) 33cm x 28cm x 5cm	FedEx® Small Box Internal measurements: 27.6 x 31.1 x 3.8 cm Weight limit: 9 kgs Minimum weight charged: 1 kgs

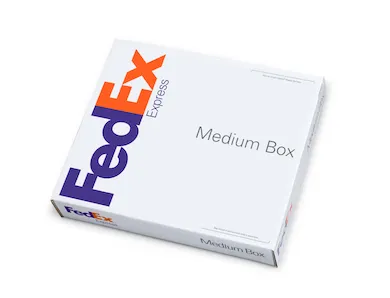

carrier-medium-box	Medium Express Box (315mm x 95mm x 460mm)	FedEx® Medium Box Internal measurements: 29.2 x 33 x 6 cm Weight limit: 9 kgs Minimum weight charged: 1 kgs

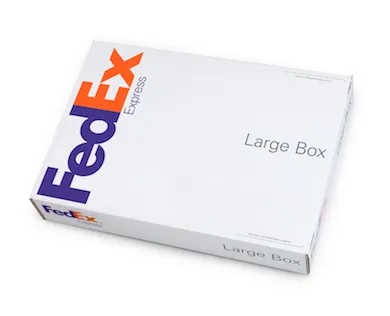

carrier-large-box	Large Express Box	FedEx® Large Box Internal measurements: 31.4 x 45.4 x 7.6 cm Weight limit: 13 kgs Minimum weight charged: 1 kgs

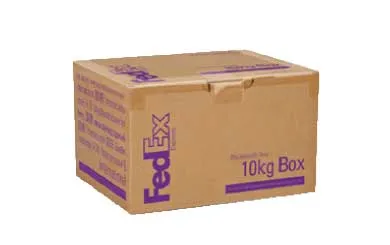

carrier-10kg-box	UPS 10KG Box	FedEx® 10kg Box Only one piece shipments, bill the sender, consignee or third parties. Internal measurements: 40.16 x 32.86 x 25.8 cm

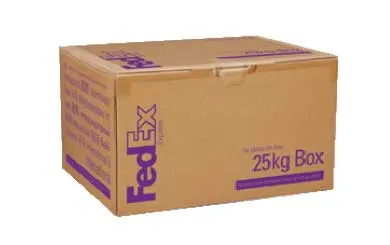

carrier-25kg-box	UPS 25KG Box	FedEx® 25kg Box Only one piece shipments, bill the sender, consignee or third parties. Internal measurements: 54.76 x 42.06 x 33.49 cm

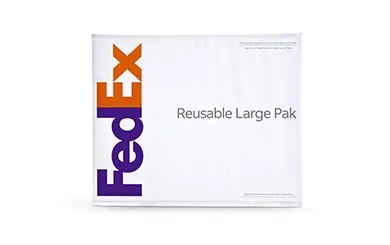

carrier-pak	UPS Express Pak Medium: 410mm x 450mm Small: 325mm x 408mm	FedEx® Pak Weight limit: 2.5 kgs Different internal sizes: Small: 26.4 x 32.4 cm Large: 30.5 x 39.4 cm Extra large: 42.5 x 52.7 cm

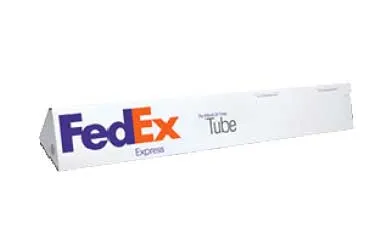

carrier-tube	Tube (970mm x 190mm x 165mm)	FedEx® Tube Internal measurements: 96.5 x 15.2 x 15.2 cm Weight limit: 9 kgs Minimum weight charged: 4 kgs

The carriers have more packaging types they offer, but in the integrations these are the ones that are specifically mentioned.

Less commonly used packaging types

For completeness, all codes that we took from the unece list and not listed above are mentioned below:

gateway packageTypeCode	description	unece code	comments
bag	Bag	BG
bag-flexi	Flexibag	FB	already used, but as FX
bag-gunny	Bag, gunny	GY
bag-jute	Jutebag	JT
bag-large	Bag, large	ZB
bag-multi-wall	Sack, multi-wall	MS
bag-paper	Bag, paper	5M
bag-paper-multi-wall	Bag, paper, multi-wall	XJ
bag-paper-multi-wall-water-resistant	Bag, paper, multi-wall, water resistant	XK
bag-plastic	Bag, plastic	EC
bag-plastics-film	Bag, plastics film	XD
bag-poly	Bag, polybag	44
bag-textile	Bag, textile	5L
bag-textile-sift-proof	Bag, textile, sift proof	XG
bag-textile-water-resistant	Bag, textile, water resistant	XH
bag-textile-without-coat-liner	Bag, textile, without inner coat/liner	XF
bag-woven-plastic	Bag, woven plastic	5H
bag-woven-plastic-sift-proof	Bag, woven plastic, sift proof	XB
bag-woven-plastic-water-resistant	Bag, woven plastic, water resistant	XC
bag-woven-plastic-without-coat-liner	Bag, woven plastic, without inner coat/liner	XA
bale-compressed	Bale, compressed	BL
bale-non-compressed	Bale, non-compressed	BN
barrel	Barrel	BA
barrel-wooden	Barrel, wooden	2C
barrel-wooden-bung-type	Barrel, wooden, bung type	QH
barrel-wooden-removable-head	Barrel, wooden, removable head	QJ
basket	Basket	BK
basket-cardboard	Basket, with handle, cardboard	HC
basket-plastic	Basket, with handle, plastic	HA
basket-wooden	Basket, with handle, wooden	HB
bin	Bin	BI
bottle-gas	Bottle, gas	GB
box-aluminium	Box, aluminium	4B
box-chep	Box, Commonwealth Handling Equipment Pool (CHEP), Eurobox	DH
box-fibreboard	Box, fibreboard	4G
box-for-liquids	Box, for liquids	BW
box-natural-wood	Box, natural wood	4C
box-natural-wood-ordinary	Box, wooden, natural wood, ordinary	QP
box-natural-woord-sift-proof	Box, wooden, natural wood, with sift proof walls	QQ
box-plastic	Box, plastic	4H
box-plastic-expanded	Box, plastic, expanded	QR
box-plastic-solid	Box, plastic, solid	QS
box-plywood	Box, plywood	4D
box-reconstructed-wood	Box, reconstituted wood	4F
box-steel	Box, steel	4A
box-wooden	Lug	LU
bucket	Bucket	BJ
bulk-gas	Bulk, gas (at 1031 mbar and 15°C)	VG
bulk-liquefied gas	Bulk, liquefied gas (at abnormal temperature/pressure)	VQ
bulk-liquid	Bulk, liquid	VL
bulk-scrap-metal	Bulk, scrap metal	VS
bulk-solid	Bulk, solid, large particles (“nodules”)	VO
bulk-solid-grains	Bulk, solid, granular particles (“grains”)	VR
bulk-solid-powders	Bulk, solid, fine particles (“powders”)	VY
bundle	Bundle	BE
cage	Cage	CG
cage-chep	Cage, Commonwealth Handling Equipment Pool (CHEP)	DG
cage-wheels-900x770x1513	Two sided cage on wheels with fixing strap	O1
can	Can, cylindrical	CX
can-rectangular	Can, rectangular	CA
carboy-non-protected	Carboy, protected	CP
carboy-protected	Carboy, non-protected	CO
case	Case	CS
case-isothermic	Case, isothermic	EI
case-skeleton	Case, skeleton	SK
case-steel	Case, steel	SS
case-wooden	Case, wooden	7B
chest	Chest	CH
chest-sea	Sea-chest	SE
churn	Churn	CC
coffin	Coffin	CJ
coil	Coil	CL
container-metal	Container, metal	ME
crate-beer	Crate, beer	CB
crate-bottlerack	Bottlecrate / bottlerack	BC
crate-bulk-cardboard	Crate, bulk, cardboard	DK
crate-bulk-plastic	Crate, bulk, plastic	DL
crate-bulk-wooden	Crate, bulk, wooden	DM
crate-framed	Crate, framed	FD
crate-fruit	Crate, fruit	FC
crate-metal	Crate, metal	MA
crate-milk	Crate, milk	MC
crate-multi-layer-cardboard	Crate, multiple layer, cardboard	DC
crate-multi-layer-plastic	Crate, multiple layer, plastic	DA
crate-multi-layer-wooden	Crate, multiple layer, wooden	DB
crate-shallow	Crate, shallow	SC
crate-wooden	Crate, wooden	8B
cylinder	Cylinder	CY
drum	Container, flexible	1F
drum-aluminium	Drum, aluminium	1B
drum-aluminium-non-removable-head	Drum, aluminium, non-removable head	QC
drum-aluminium-removable-head	Drum, aluminium, removable head	QD
drum-fibreboard	Drum, fibre	1G
drum-iron	Drum, iron	DI
drum-plastic	Drum, plastic	IH
drum-plastic-non-removable-head	Drum, plastic, non-removable head	QF
drum-plastic-removable-head	Drum, plastic, removable head	QG
drum-plywood	Drum, plywood	1D
drum-steel	Drum, steel	1A
drum-steel-removable-head	Drum, steel, removable head	QB
drum-wooden	Drum, wooden	1W
dum-steel-non-removable-head	Drum, steel, non-removable head	QA
envelope-steel	Envelope, steel	SV
firkin	Firkin	FI
foodtainer	Foodtainer	FT
frame	Frame	FR
hamper-wickerwork	Composite packaging, glass receptacle in wickerwork hamper	YV
hanger	Hanger	HN
hogshead	Hogshead	HG
ibc-aluminium	Intermediate bulk container, aluminium	WD
ibc-aluminium-liquid	Intermediate bulk container, aluminium, liquid	WL
ibc-aluminium-pressurized-above-10kpa	Intermediate bulk container, aluminium, pressurised > 10 kpa	WH
ibc-bag-flexible	Bag, flexible container	FX
ibc-bag-jumbo	Bag, jumbo	JB
ibc-bag-pallet-sized	Large bag, pallet sized	OW
ibc-composite	Intermediate bulk container, composite	ZS
ibc-composite-flexible-plastic-liquids	Intermediate bulk container, composite, flexible plastic, liquids	ZR
ibc-composite-flexible-plastic-pressurised	Intermediate bulk container, composite, flexible plastic, pressurised	ZP
ibc-composite-flexible-plastic-solids	Intermediate bulk container, composite, flexible plastic, solids	ZM
ibc-composite-rigid-plastic-liquids	Intermediate bulk container, composite, rigid plastic, liquids	ZQ
ibc-composite-rigid-plastic-pressurised	Intermediate bulk container, composite, rigid plastic, pressurised	ZN
ibc-composite-rigid-plastic-solids	Intermediate bulk container, composite, rigid plastic, solids	ZL
ibc-fibreboard	Intermediate bulk container, fibreboard	ZT
ibc-flexible	Intermediate bulk container, flexible	ZU
ibc-metal	Intermediate bulk container, metal	WF
ibc-metal-no-steal	Intermediate bulk container, metal, other than steel	ZV
ibc-metal-liquid	Intermediate bulk container, metal, liquid	WM
ibc-metal-pressurized-10kpa	Intermediate bulk container, metal, pressure 10 kpa	WJ
ibc-natural-wood	Intermediate bulk container, natural wood	ZW
ibc-natural-wood-inner-liner	Intermediate bulk container, natural wood, with inner liner	WU
ibc-paper-multi-wall	Intermediate bulk container, paper, multi-wall	ZA
ibc-paper-multi-wall-water-resistant	Intermediate bulk container, paper, multi-wall, water resistant	ZC
ibc-plastic-film	Intermediate bulk container, plastic film	WS
ibc-plywood	Intermediate bulk container, plywood	ZX
ibc-plywood-inner-liner	Intermediate bulk container, plywood, with inner liner	WY
ibc-reconstituded-wood	Intermediate bulk container, reconstituted wood	ZY
ibc-reconstituded-wood-inner-liner	Intermediate bulk container, reconstituted wood, with inner liner	WZ
ibc-rigid-plastic	Intermediate bulk container, rigid plastic	AA
ibc-rigid-plastic-freestanding-liquids	Intermediate bulk container, rigid plastic, freestanding, liquids	ZK
ibc-rigid-plastic-freestanding-pressurised	Intermediate bulk container, rigid plastic, freestanding, pressurised	ZH
ibc-rigid-plastic-freestanding-solids	Intermediate bulk container, rigid plastic, freestanding, solids	ZF
ibc-rigid-plastic-structural-equipment-liquids	Intermediate bulk container, rigid plastic, with structural equipment, liquids	ZJ
ibc-rigid-plastic-structural-equipment-pressurised	Intermediate bulk container, rigid plastic, with structural equipment, pressurised	ZG
ibc-rigid-plastic-structural-equipment-solids	Intermediate bulk container, rigid plastic, with structural equipment, solids	ZD
ibc-steel	Intermediate bulk container, steel	WC
ibc-steel-liquid	Intermediate bulk container, steel, liquid	WK
ibc-steel-pressurized-above-10kpa	Intermediate bulk container, steel, pressurised > 10 kpa	WG
ibc-textile-coated	Intermediate bulk container, textile, coated	WV
ibc-textile-coated-and-liner	Intermediate bulk container, textile, coated and liner	WX
ibc-textile-liner	Intermediate bulk container, textile, with liner	WW
ibc-textile-out-coat-liner	Intermediate bulk container, textile with out coat/liner	WT
ibc-woven-plastic-coated	Intermediate bulk container, woven plastic, coated	WP
ibc-woven-plastic-coated-and-liner	Intermediate bulk container, woven plastic, coated and liner	WR
ibc-woven-plastic-with-liner	Intermediate bulk container, woven plastic, with liner	WQ
ibc-woven-plastic-without-coat-liner	Intermediate bulk container, woven plastic, without coat/liner	WN
jar	Jar	JR
jerrican-cylindrical	Jerrican, cylindrical	JY
jerrican-plastic	Jerrican, plastic	3H
jerrican-plastic-non-removable-head	Jerrican, plastic, non-removable head	QM
jerrican-plastic-removable-head	Jerrican, plastic, removable head	QN
jerrican-rectengular	Jerrican, rectangular	JC
jerrican-steel	Jerrican, steel	3A
jerrican-steel-non-removable-head	Jerrican, steel, non-removable head	QK
jerrican-steel-removable-head	Jerrican, steel, removable head	QL
jug	Jug	JG
keg	Keg	KG
liftvan	Liftvan	LV
net	Net	NT
net-red	Rednet	RT
net-tube-plastic	Net, tube, plastic	NU
net-tube-textile	Net, tube, textile	NV
package-cardboard-bottle	Package, cardboard, with bottle grip-holes	IK
pack-plastic-expandable	Composite packaging, glass receptacle in expandable plastic pack	YY
pack-plastic-solid	Composite packaging, glass receptacle in solid plastic pack	YZ
pail	Pail	PL
pallet	Pallet	PX
pallet-oneway	Oneway pallet	OS
pallet-100x120-chep	Pallet, CHEP 100 cm x 120 cm	OC
pallet-110x110-iso-t11	Pallet, ISO T11	OE
pallet-116.5x116.5-as	Pallet, AS 4068-1993	OD
pallet-40x60-chep	Pallet, CHEP 40 cm x 60 cm	OA
pallet-60x100	Pallet 60 X 100 cm	OR
pallet-60x80-chep	CHEP pallet 60 cm x 80 cm	P1
pallet-60x80-lpr	LPR pallet 60 cm x 80 cm	P3
pallet-80x100	Pallet 80 X 100 cm	OQ
pallet-80x120-chep	Pallet, CHEP 80 cm x 120 cm	OB
pallet-80x120-lpr	LPR pallet 80 cm x 120 cm	P4
pallet-80x60	Pallet, modular, collars 80cms * 60cms	AF
pallet-case	Case, with pallet base	ED
pallet-case-cardboard	Case, with pallet base, cardboard	EF
pallet-case-metal	Case, with pallet base, metal	EH
pallet-case-plastic	Case, with pallet base, plastic	EG
pallet-case-wooden	Case, with pallet base, wooden	EE
pallet-exceptional	Pallet with exceptional dimensions	O6
pallet-modular-80x100	Pallet, modular, collars 80cms * 100cms	PD
pallet-modular-80x120	Pallet, modular, collars 80cms * 120cms	PE
pallet-octabin	Octabin	OT
pallet-plastic-60x80-srs	Plastic pallet SRS 60 cm x 80 cm	O8
pallet-plastic-80x120-srs	Plastic pallet SRS 80 cm x 120 cm	O9
pallet-platform	Platform, unspecified weight or dimension	OF
pallet-returnable	Returnable pallet	OV
pallet-synthentic-100x120	Synthetic pallet ISO 2	ON
pallet-synthentic-80x120	Synthetic pallet ISO 1	OM
pallet-triwall	Pallet, triwall	TW
pallet-wheeled-81x60x16	Wheeled pallet with raised rim ( 81 x 60 x 16)	OZ
pallet-wheeled-81x67x135	A wheeled pallet with raised rim (81 x 67 x 135)	OX
pallet-wheeled-81x72x135	A Wheeled pallet with raised rim (81 x 72 x 135)	OY
pallet-wholesaler	Wholesaler pallet	OP
pallet-wooden	Pallet, wooden	8A
pallet-wooden-40x80	Wooden pallet 40 cm x 80 cm	O7
paper-wrapped	Package, paper wrapped	IG
rack	Rack	RK
rack-clothing-hanger	Rack, clothing hanger	RJ
receptacle-fibre	Receptacle, fibre	AB
receptacle-glass	Receptacle, glass	GR
receptacle-metal	Receptacle, metal	MR
receptacle-paper	Receptacle, paper	AC
receptacle-plastic-wrapped	Receptacle, plastic wrapped	MW
receptacle-plastic	Receptacle, plastic	PR
receptacle-wooden	Receptacle, wooden	AD
reel	Reel	RL
roll	Roll	RO
sack	Sack	SA
skid	Skid	SI
spool	Spool	SO
suitcase	Suitcase	SU
tank	Tank container, generic	TG
tank-cylindrical	Tank, cylindrical	TY
tank-plastic-flexi	Flexitank	FE
tank-rectangular	Tank, rectangular	TK
tierce	Tierce	TI
tray	Tray	PU
trolly	Trolley	O2
trunk	Trunk	TR
tub	Tub	TB
tube	Tube	TU
tub-with-lid	Tub, with lid	TL
tube-collapsible	Tube, collapsible	TD
vat	Vat	VA

Other UNECE packing types (therefore not mapped)

These packing types are not considered as relevant a relevent packing type for shipping a logistic unit (or handling unit).

These are mostly goodsItems packaging or packing types with a complexity that is not relevant for shipping.

description	unece code	comments
Bag, super bulk	43
Composite packaging, plastic receptacle	6H	To generic
Composite packaging, glass receptacle	6P	To generic
Case, car	7A	To generic
Bundle, wooden	8C	Is a product. Use Bundle
Aerosol	AE	Is more a goodsItem packaging
Pallet, shrinkwrapped	AG	shrinkwrapped is a property of securement, not a packageType
Clamshell	AI	Is more a goodsItem packaging
Cone	AJ	Is more a goodsItem packaging
Ball	AL	Is more a goodsItem packaging
Ampoule, non-protected	AM	Is more a goodsItem packaging
Ampoule, protected	AP	Is more a goodsItem packaging
Atomizer	AT	Is more a goodsItem packaging
Capsule	AV	Is more a goodsItem packaging
Belt	B4	Is a product. Use Bundle
Bobbin	BB	Is more a goodsItem packaging
Board	BD	Not relevant, will not be used as packaging for transport between parties
Balloon, non-protected	BF	Is more a goodsItem packaging
Creel	CE	Use basket
Bunch	BH	not relevant, is more an indication of more than 1
Basin	BM	Not relevant, will not be used as packaging for transport between parties
Bottle, non-protected, cylindrical	BO	Is more a goodsItem packaging
Balloon, protected	BP	Is more a goodsItem packaging
Bottle, protected cylindrical	BQ	Is more a goodsItem packaging
Bar	BR	Is more a goodsItem packaging
Bottle, non-protected, bulbous	BS	Is more a goodsItem packaging
Bolt	BT	Is more a goodsItem packaging
Butt	BU	Is more a goodsItem packaging
Bottle, protected bulbous	BV	Is more a goodsItem packaging
Board, in bundle/bunch/truss	BY	Use bundle
Bars, in bundle/bunch/truss	BZ	Use bundle
Canister	CI	Is more a goodsItem packaging, typically overpacked for transport
Card	CM	Is more a goodsItem packaging
Container, not otherwise specified as transport equipment	CN	Not included as it will cause undesired use.
Cartridge	CQ	Is more a goodsItem packaging
Cup	CU	Is more a goodsItem packaging
Coffer	CF	Use chest
Cover	CV	Is more a goodsItem packaging
Can, with handle and spout	CD	Use can
Canvas	CZ	Is more a goodsItem packaging
Cask	CK	Use barel
Composite packaging, plastic receptacle in fibreboard box	YK	Use box-fibreboard
Composite packaging, glass receptacle in fibreboard box	YX	Use box-fibreboard
Composite packaging, plastic receptacle in solid plastic box	YM	Use box-plastic
Composite packaging, plastic receptacle in plywood box	YH	Use box-plywood
Composite packaging, plastic receptacle in wooden box	YF	Use box-wooden
Composite packaging, glass receptacle in wooden box	YS	Use box-wooden
Composite packaging, plastic receptacle in aluminium crate	YD	Use crate-metal
Composite packaging, glass receptacle in aluminium crate	YR	Use crate-metal
Composite packaging, plastic receptacle in steel crate box	YB	Use crate-metal
Composite packaging, glass receptacle in steel crate box	YP	Use crate-metal
Composite packaging, plastic receptacle in fibre drum	YJ	Use drum
Composite packaging, glass receptacle in fibre drum	YW	Use drum
Composite packaging, plastic receptacle in aluminium drum	YC	Use drum-aluminium
Composite packaging, glass receptacle in aluminium drum	YQ	Use drum-aluminium
Composite packaging, plastic receptacle in plastic drum	YL	Use drum-plastic
Composite packaging, plastic receptacle in plywood drum	YG	Use drum-plywood
Composite packaging, glass receptacle in plywood drum	YT	Use drum-plywood
Composite packaging, plastic receptacle in steel drum	YA	Use drum-steel
Composite packaging, glass receptacle in steel drum	YN	Use drum-steel
Demijohn, non-protected	DJ	Is more a goodsItem packaging
Dispenser	DN	Is more a goodsItem packaging
Demijohn, protected	DP	Is more a goodsItem packaging
Tray, one layer no cover, plastic	DS	Is more a goodsItem packaging
Tray, one layer no cover, wooden	DT	Is more a goodsItem packaging
Tray, one layer no cover, polystyrene	DU	Is more a goodsItem packaging
Tray, one layer no cover, cardboard	DV	Is more a goodsItem packaging
Tray, two layers no cover, plastic tray	DW	Is more a goodsItem packaging
Tray, two layers no cover, wooden	DX	Is more a goodsItem packaging
Tray, two layers no cover, cardboard	DY	Is more a goodsItem packaging
Flask	FL	Is more a goodsItem packaging, typically overpacked for transport
Footlocker	FO	Is more a goodsItem packaging, typically overpacked for transport
Filmpack	FP	Is more a goodsItem packaging, typically overpacked for transport
Cart, flatbed	FW	is equipment
Girder	GI	Is more a goodsItem packaging, typically overpacked for transport
Container, gallon	GL	Is more a goodsItem packaging, typically overpacked for transport
Girders, in bundle/bunch/truss	GZ	use bundle
Hamper	HR	use basket
Package, display, wooden	IA	Is more a goodsItem packaging, typically overpacked for transport
Package, display, cardboard	IB	Is more a goodsItem packaging, typically overpacked for transport
Package, display, plastic	IC	Is more a goodsItem packaging, typically overpacked for transport
Package, display, metal	ID	Is more a goodsItem packaging, typically overpacked for transport
Package, show	IE	Is more a goodsItem packaging, typically overpacked for transport
Package, flow	IF	Is more a goodsItem packaging, typically overpacked for transport
Tray, rigid, lidded stackable (CEN TS 14482:2002)	IL	this is internal transport, not between parties
Ingot	IN	Is more a goodsItem packaging, typically overpacked for transport
Ingots, in bundle/bunch/truss	IZ	Use bundle
Kit	KI	Is more a goodsItem packaging, typically overpacked for transport
Luggage	LE	Is more a goodsItem packaging, typically overpacked for transport
Log	LG	Is more a goodsItem packaging, typically overpacked for transport
Lot	LT	is not transport packaging
Logs, in bundle/bunch/truss	LZ	Is more a goodsItem packaging, typically overpacked for transport
Bag, multiply	MB	Is more a goodsItem packaging, typically overpacked for transport
Mat	MT	Is more a goodsItem packaging, typically overpacked for transport
Matchbox	MX	Is more a goodsItem packaging, typically overpacked for transport
Not available	NA
Unpacked or unpackaged, single unit	NF	each handling unit would be unpacked on its-own
Unpacked or unpackaged, multiple units	NG	each handling unit would be unpacked on its-own
Nest	NS	Is more a goodsItem packaging, typically overpacked for transport
Block	OK	Is more a goodsItem packaging, typically overpacked for transport
Container, outer	OU	Not included as it will cause undesired use.
Pan	P2	Is more a goodsItem packaging, typically overpacked for transport
Packet	PA	Is more a goodsItem packaging, typically overpacked for transport
Parcel	PC	is an object, not a packaging type. Eg: a parcel can be packed as box or bag.
Pen	PF	Is more a goodsItem packaging, typically overpacked for transport
Plate	PG	Is more a goodsItem packaging, typically overpacked for transport
Pitcher	PH	Is more a goodsItem packaging, typically overpacked for transport
Pipe	PI	Is more a goodsItem packaging, typically overpacked for transport
Punnet	PJ	Is more a goodsItem packaging, typically overpacked for transport
Package	PK	is an object, not a packaging type. Eg: a package can be packed as box or bag.
Plank	PN	Is more a goodsItem packaging, typically overpacked for transport
Pouch	PO	Is more a goodsItem packaging, typically overpacked for transport
Piece	PP	use unpacked
Pot	PT	Is more a goodsItem packaging, typically overpacked for transport
Pipes, in bundle/bunch/truss	PV	Use bundle
Plates, in bundle/bunch/truss	PY	Use bundle
Planks, in bundle/bunch/truss	PZ	Use bundle
Rod	RD	equipment not packaging
Ring	RG	is a shap, not packaging
Rods, in bundle/bunch/truss	RZ	Use bundle
Slab	SB	Is more a goodsItem packaging, typically overpacked for transport
Spindle	SD	Is more a goodsItem packaging, typically overpacked for transport
Sachet	SH	Is more a goodsItem packaging, typically overpacked for transport
Slipsheet	SL	Is more a goodsItem packaging, typically overpacked for transport
Sheetmetal	SM	Is more a goodsItem packaging, typically overpacked for transport
Sheet, plastic wrapping	SP	Is more a goodsItem packaging, typically overpacked for transport
Sheet	ST	Is more a goodsItem packaging, typically overpacked for transport
Shrinkwrapped	SW	is a method of packing, not package type
Set	SX
Sleeve	SY	Is more a goodsItem packaging, typically overpacked for transport
Sheets, in bundle/bunch/truss	SZ	Use bundle
Tablet	T1	Is more a goodsItem packaging, typically overpacked for transport
Tea-chest	TC	Is more a goodsItem packaging, typically overpacked for transport
Tyre	TE	Is more a goodsItem packaging, typically overpacked for transport
Tin	TN	Is more a goodsItem packaging, typically overpacked for transport
Tun	TO	Is more a goodsItem packaging, typically overpacked for transport
Truss	TS	Is more a goodsItem packaging, typically overpacked for transport
Bag, tote	TT	Is more a goodsItem packaging, typically overpacked for transport
Tray, containing horizontally stacked flat items	GU	Use tray
Tube, with nozzle	TV	Is more a goodsItem packaging, typically overpacked for transport
Tubes, in bundle/bunch/truss	TZ	Use bundle
Uncaged	UC	is a state, not a packaging type
Unit	UN	use notpackaging
Vial	VI	Is more a goodsItem packaging, typically overpacked for transport
Vanpack	VK	Is more a goodsItem packaging, typically overpacked for transport
Vacuum-packed	VP	is a state, not a packaging type
Vehicle	VN	Is more a goodsItem packaging, typically overpacked for transport
Mutually defined	ZZ

Sources

Sources:

• https://www.gs1gt.org/wp-content/uploads/2020/01/GDSN_Trade_Item_Implementation_Guide.pdf
• https://www.gs1.nl/media/qcdhditc/so-gs1das-guideline-packaging-type.pdf
  • Also used by Open Trip Model: in TransportOrder.Consignments.Entity.Goods.packagingMaterial
• https://unece.org/trade/uncefact/cl-recommendations
• https://airseacontainers.com/blog/un-packaging-codes/
• https://www.qafila.com/intermediate-bulk-containers-a-guide-to-types-dimension-specifications/
• https://www.chep.com/be/en/products
• https://www.lpr.eu/
• https://www.palletplaza.nl/
• https://www.ups.com/
• https://www.fedex.com/en-nl/shipping/packaging/supplies.html
